Band Sawmill Electric Model

Feature

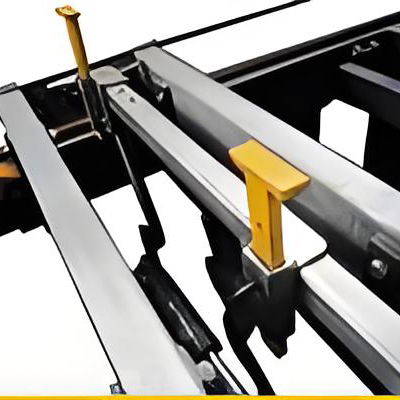

* Hydraulic wood clamping system, easy to operate
* Power: electric motor or diesel engine
* Applicable wood: hardwood,softwood, such as teak, oak,kwila,African rosewood, mahogany etc.

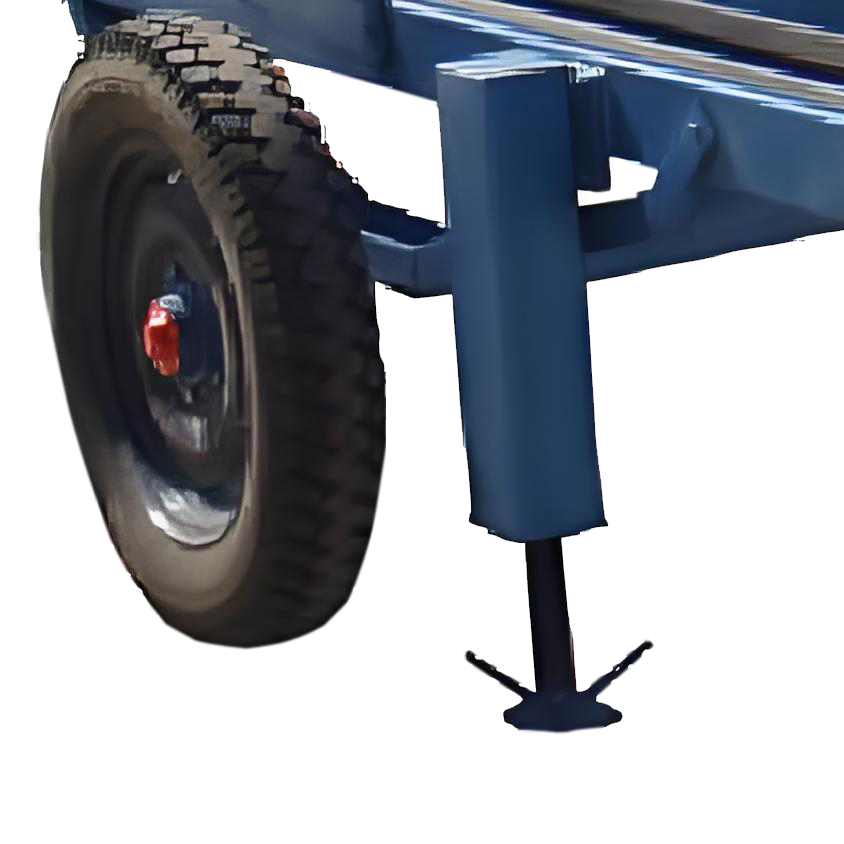

* Mobile wheels and adjustable legs can also be installed.
* Installation: easy installing, operation guide will be provided.
* Labor saving, high production
* Options: computer touch screen set sawing thickness, adjustable moving
Logs can be opened directly, horizontal gantry saw, small sawing road, fast speed, large-scale mahogany, teak, red sandalwood, rosewood and other precious materials processing machine tools automatically return materials, saving labor, and can be customized according to customer requirements.

Introduction

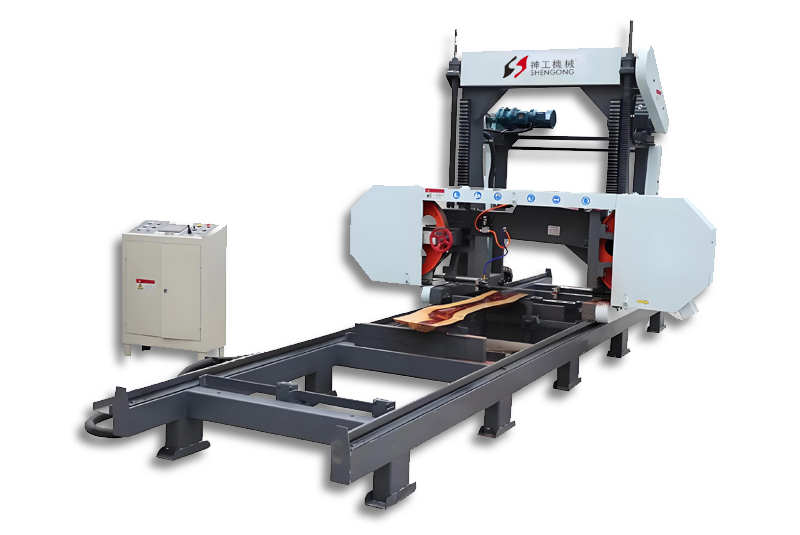

Portable Horizontal Band Sawmill-electric Model

Portable Horizontal Band Saw is our patented product. It is easy to install and operate, smooth finishing by Carbide band saw blade. The cutting kerf is small, reduce the waste to high output. Suitable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest.

Model：	SMJ700E	SMJ1000E	SMJ1300E	SMJ1600E
Max. Cutting diameter：	700mm	1000mm	1300mm	1600mm
Saw wheel diameter：	600mm	700mm	700mm	700mm
Sawn lumber thickness：	10-250mm	10-300mm	10-300mm	10-300mm
Cutting max. length：	4500mm	4500mm	4500mm	4500mm
Electric motor power：	15kw	18.5KW	22kw	30kw
Lifting motor power：	1.1kw	1.1kw	1.1kw	1.1kw
Tension blade mode：	manual	manual	manual	manual
Machine length：	5800mm	5800mm	5800mm	5800mm
Total weight：	600kg	1100kg	1300kg	1500kg
Quantity/20ft GP：	5 sets	2	2	2

Options
	Automatic frequency conversion 10000 RMB	Touch Screen Touch Screen Sizing Variable Frequency Speed Adjustable Forward/backward 18600 RMB
	Extension 1 m track 2500RMB	Mobile Wheels * 2 + Adjustable up / down legs 5500 RMB
	Hydraulic Log Clamp * 2 2000 RMB	Board Automatic Return Hook 2000RMB
Infrared ray: 1200 RMB

Structure Feature
	The linear guide way and precision screw ensures smooth and accurate sizing.	Center Saw Wheel Design ensures saw wheel running stabilize and extend the working life of the saw wheel, also reduce the probability of the blade break down.
	Hydraulic blade tension extend the working life of the blades.	Wear-resisting saw wheel pass the dynamic balancing emendation ensures runing smoothly.
