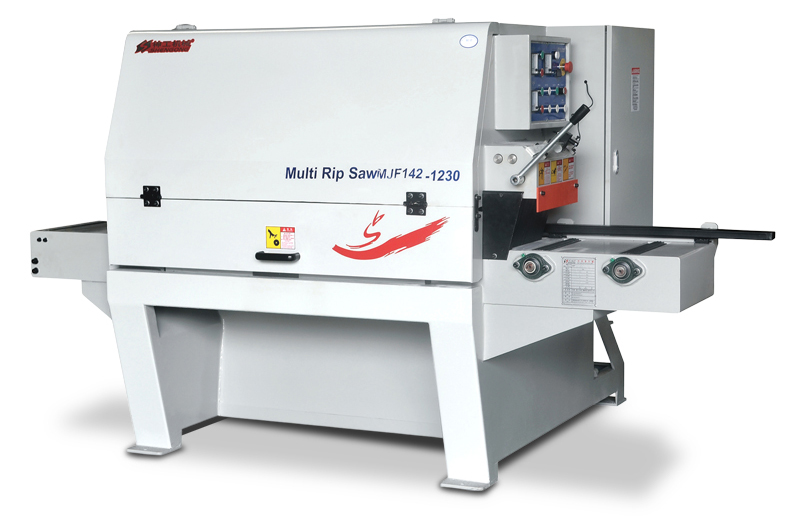

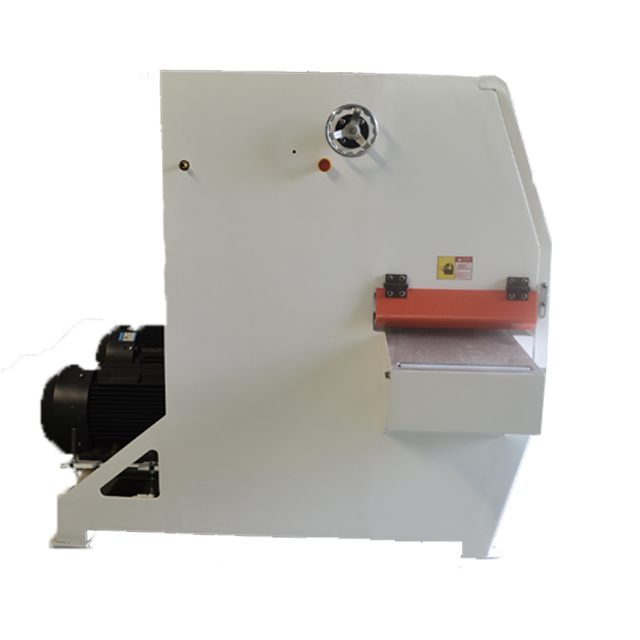

Multi Rip Saw For Square Log

This machine is MJF142 Series up& down Multi Rip Saw for Plank which is specialized in sawing plank in Wood Pallet Industry. It can increase a lot of economic efficiency and has such advantages as follows: feeding stable,high working precision by large spindle diameter,saw blade not easily deformed and save consumption for better promotion.

Introduction

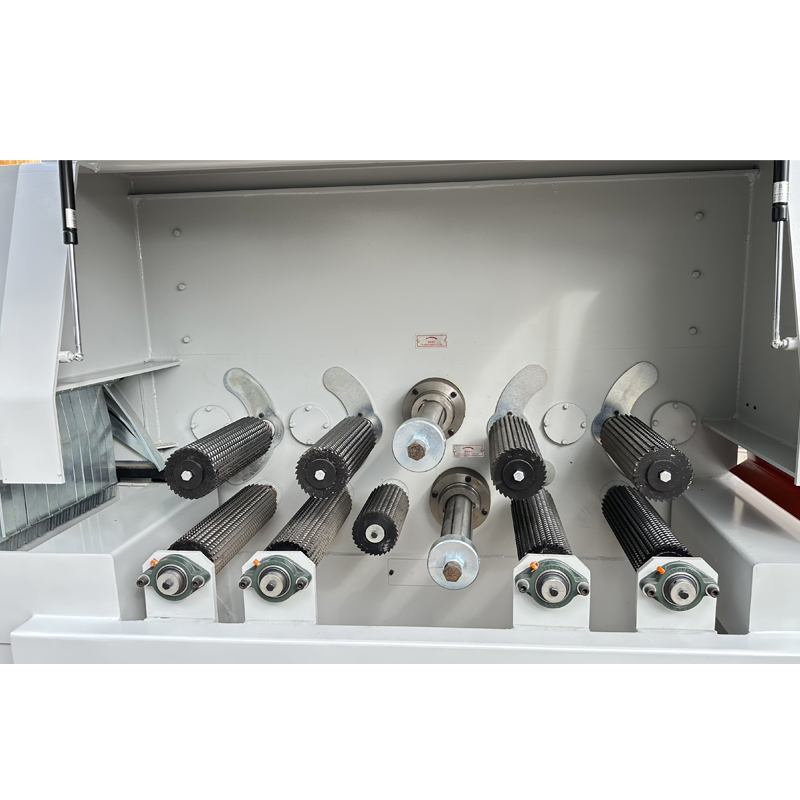

This machine is a 142 series upper and lower saw shaft square wood multi-blade saw, which is used for square wood processing in the wooden pallet industry and improves the economic benefits for users.

It has the following advantages: stable feeding, and the processing accuracy is improved by increasing the main shaft diameter, and the saw blade is not easy to deform, which greatly improves the benefits and reduces the user's loss.

Serial NO. / Model	MJF142-1230

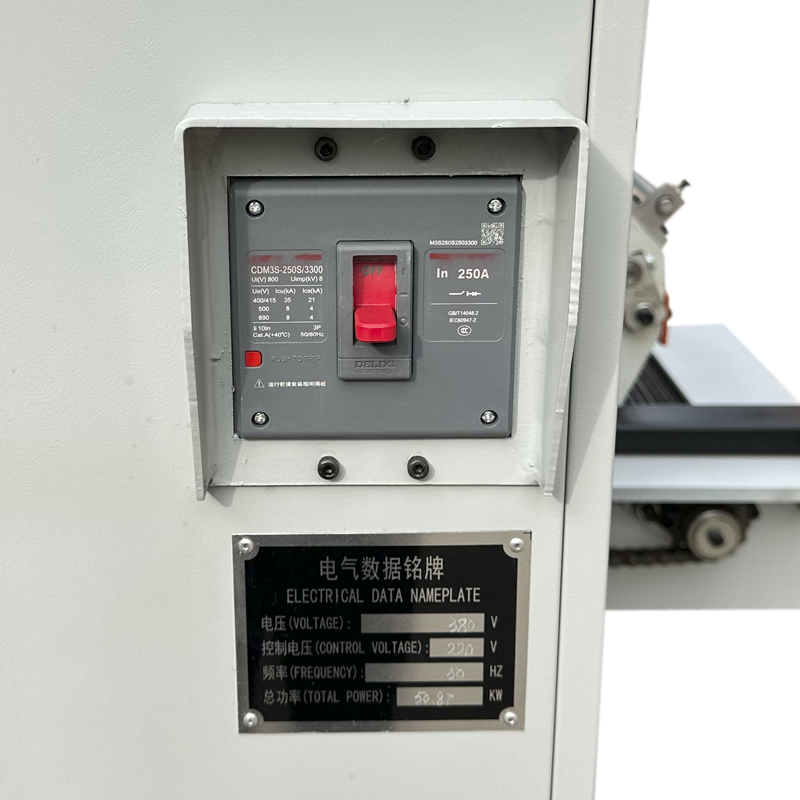

Machine total power	50.5KW
Voltage / Frequency	3HP-380V, 50HZ
Feeding speed	0-23m/min
Processing length	≥500mm
Processing width	≤300mm

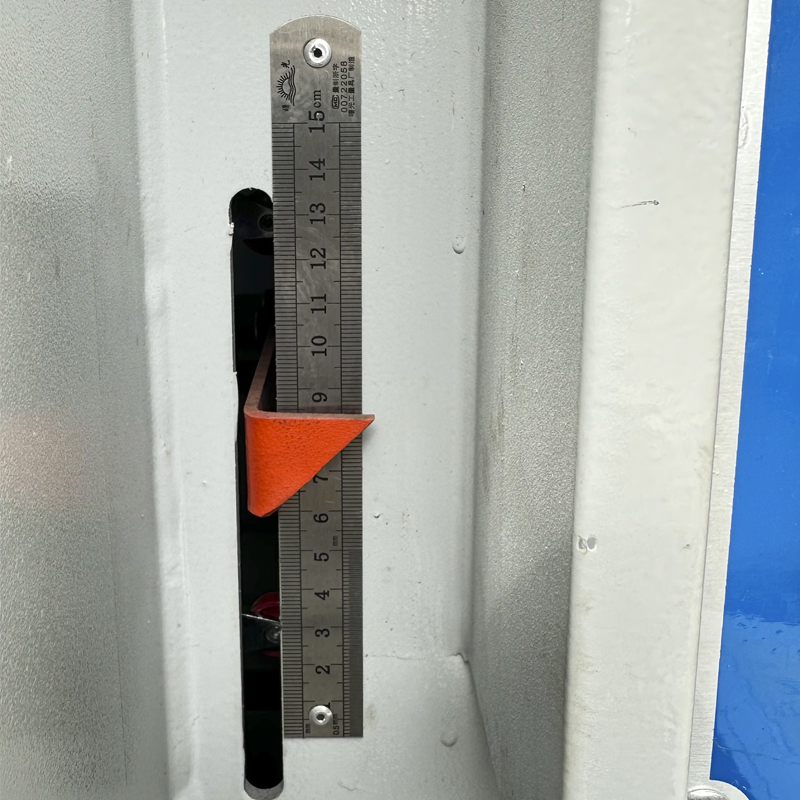

Processing height	20-120mm
Appearance size (LxWxH)	2720 x 1820 x 1560mm
Product weight	1880kg
Blade Size	Φ230 x Φ60
Spacer Size	Φ98 x Φ60

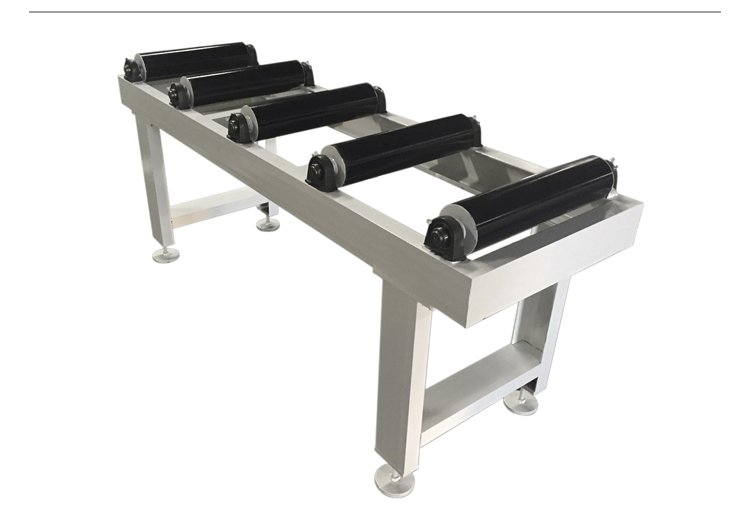

Extra Wood Conveyor	Optional, Can removable
