May be this is the best saw mechanical system you can find in CN, we developed this professional cast iron saw system, and thanks to the high rigidity of this system, it run at a very beautiful sound without noise even when we do a heavy solid wood cutting.

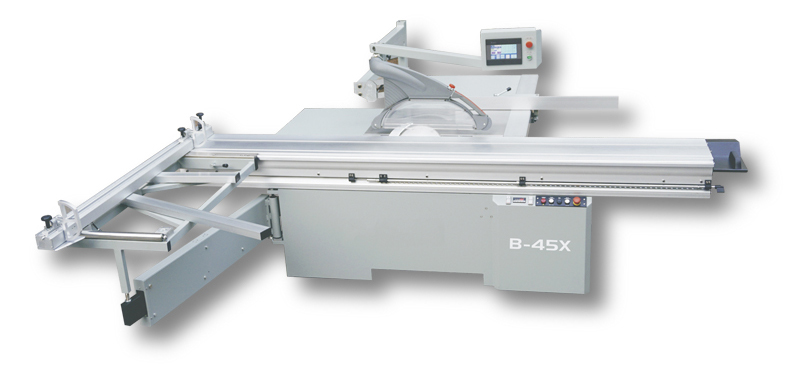

If you want to chose a extraordinary sliding table saw which is safe, heavy duty and highest precision and performance, B-45X is this kind.
With a fully automatic computer control, servo driven rip fence, digital display of cross cutting ruler, automatic blade raise and tilting of blade by just type in a number you want.
Shengong developed for you a professional cutting program which is easy to learn with in 5 minutes even for a new user, optional optimized cutting program makes it to next generation cutting.
Highest precision processing of every detail, makes it working for life long high precision.
| Model | B-45X |
| Slide table | - Standard length 3200mm Sawing length 3100mm (optional 2800mm 3000mm 3800mm) |
| Slide seat | - Maximum sawing width 1300mm, CNC adjustment, moving speed 250mm/s |
| - Accuracy +/-0.1mm, eliminating human error | |
| - End protection device with sensor | |
| - Automatic correction of gear shift data | |
| Horizontal baffle | - Maximum sawing width 3200mm, manually adjusted |
| - Equipped with imported magnifying glass/scale, precise and wear-resistant | |
| Operation panel | - Control panel at eyebrow height, digital buttons, digital display |
| - Digital adjustment of the slide seat size, electric adjustment of the main saw height and angle with buttons | |
| - Chinese-English conversion input control | |
| Main Saw | - Main saw motor power 6.5KW |
| - Main saw aperture: 30mm | |
| - No-load speed: 4000/5000 rpm | |
| - Height 0-100mm | |
| - Angle 0-45° | |
| Applicable main saw blade | - Maximum sawing height: 100mm |
| - Maximum saw blade diameter: 350mm | |
| Slot Saw | - Slot saw motor power 1.1KW |
| - Slot saw aperture: 20mm | |
| - No-load speed: 8200 rpm | |
| Extra large vacuum hood | - Fluid mechanics design, suitable for saw blades with a maximum diameter of 350mm |
| - Dust extraction bracket included | |
| Machine weight |
- 880Kg |

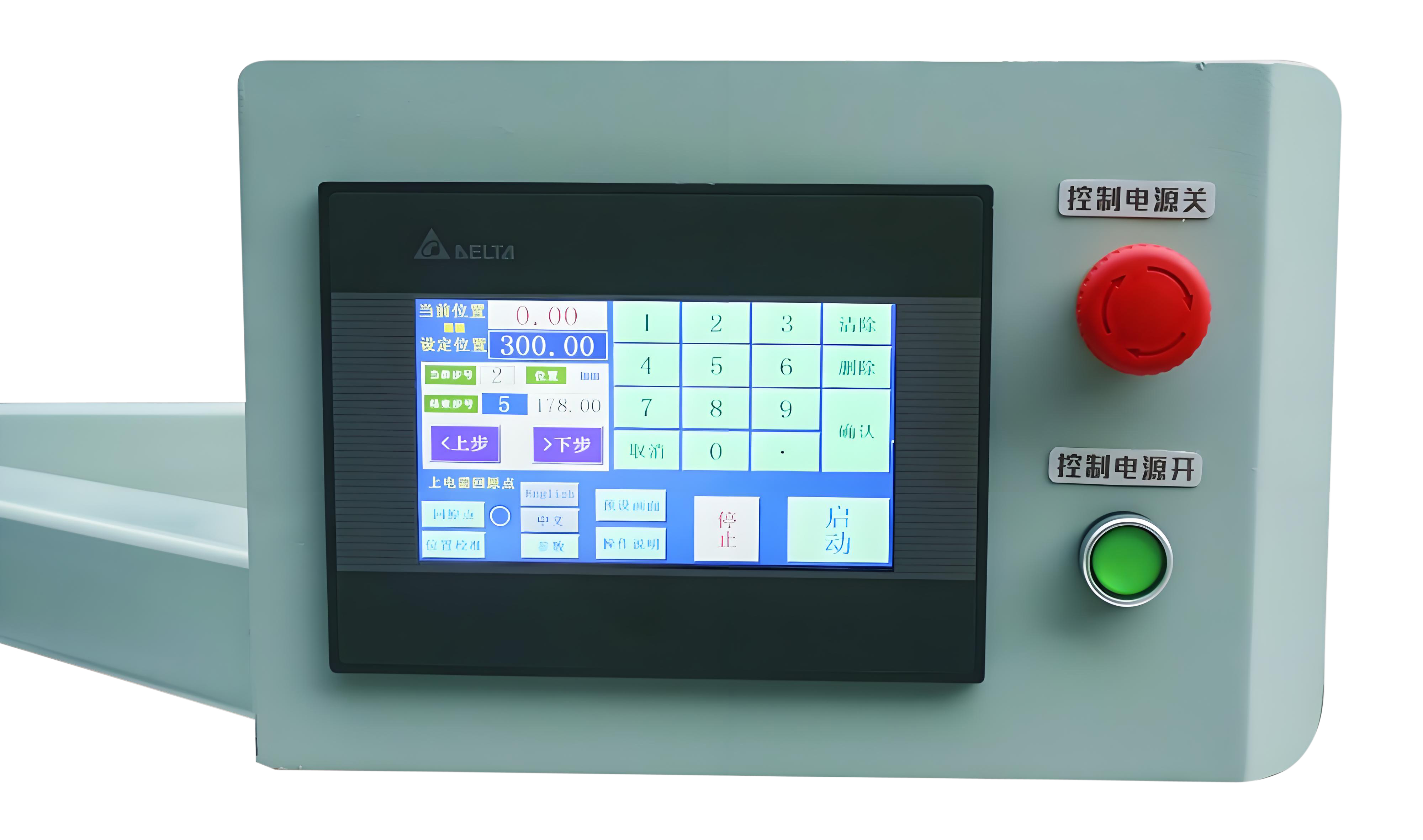

Operation panel: This panel can be used to easily achieve
✦ Uses Taiwan Delta control system, Delta server, and Delta servo motor.
✦ Chinese and English switching function

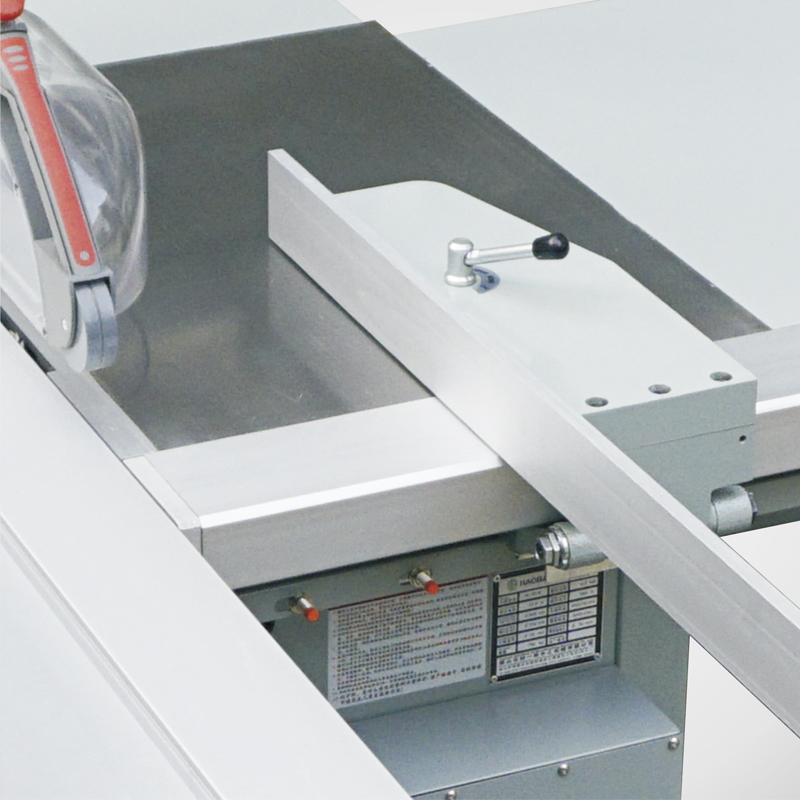

Electric CNC slide seat：Adopt German Rexroth slide block R1653-25 and dustproof guide rail R1605 and Taiwan Hiwin 4R20 ball screw.
✦ CNC electric sizing, stable accuracy reaches +/- 1/10mm
✦ Five-way positioning high-precision transmission system, speed reaches 250mm/s
✦ With automatic recognition of power failure function to prevent the danger of extrusion.
The horizontal and vertical values of the parallel baffle are automatically adjusted.

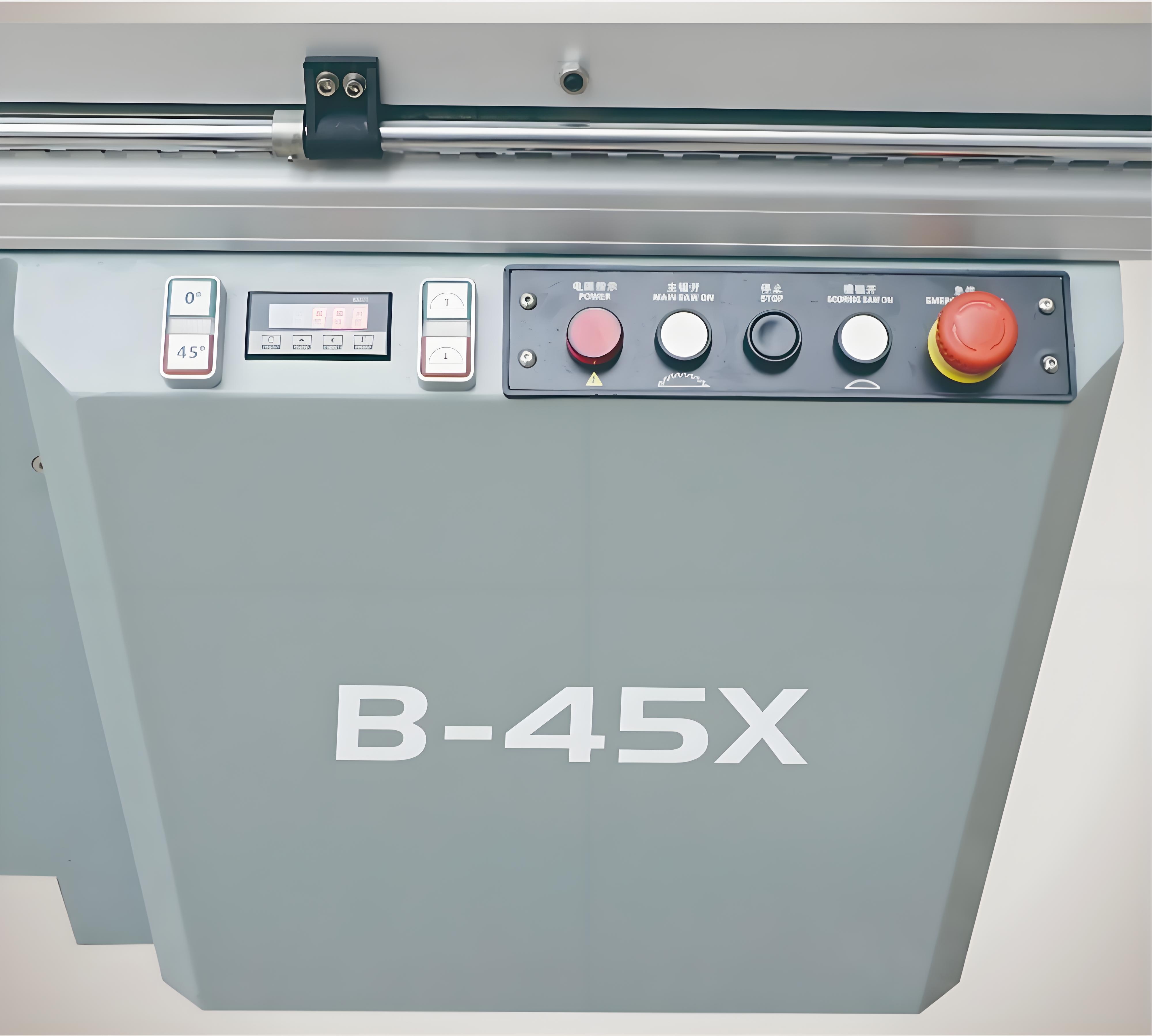

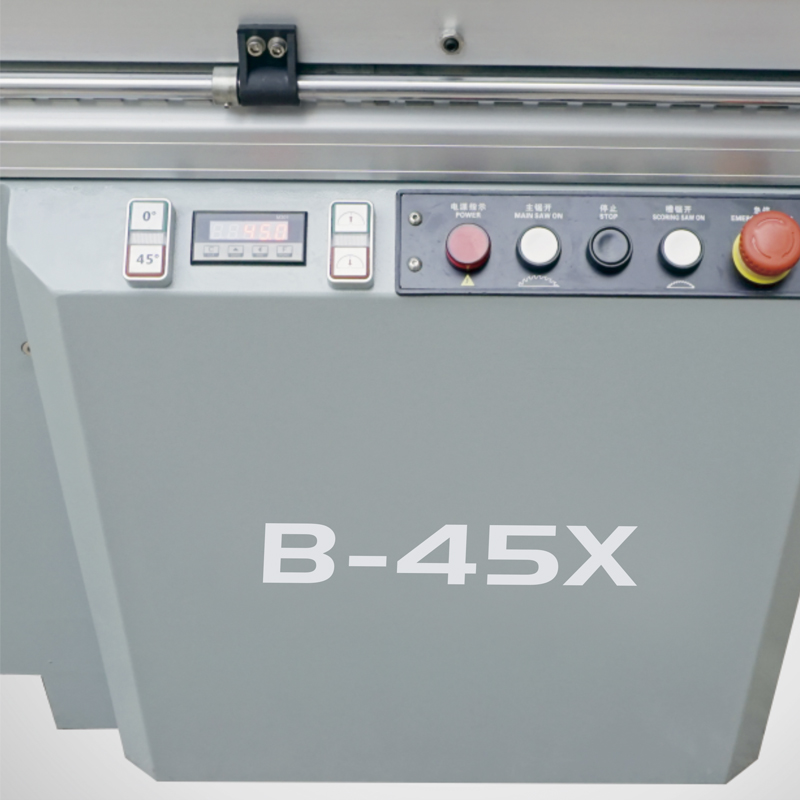

Electric control of saw blade: can be achieved through the operation panel
✦ Electric height adjustment of main saw blade
✦ Electric angle adjustment of main saw blade
✦ Swing angle range is 0°—45°
✦ Swing angle accuracy is ±0.1°

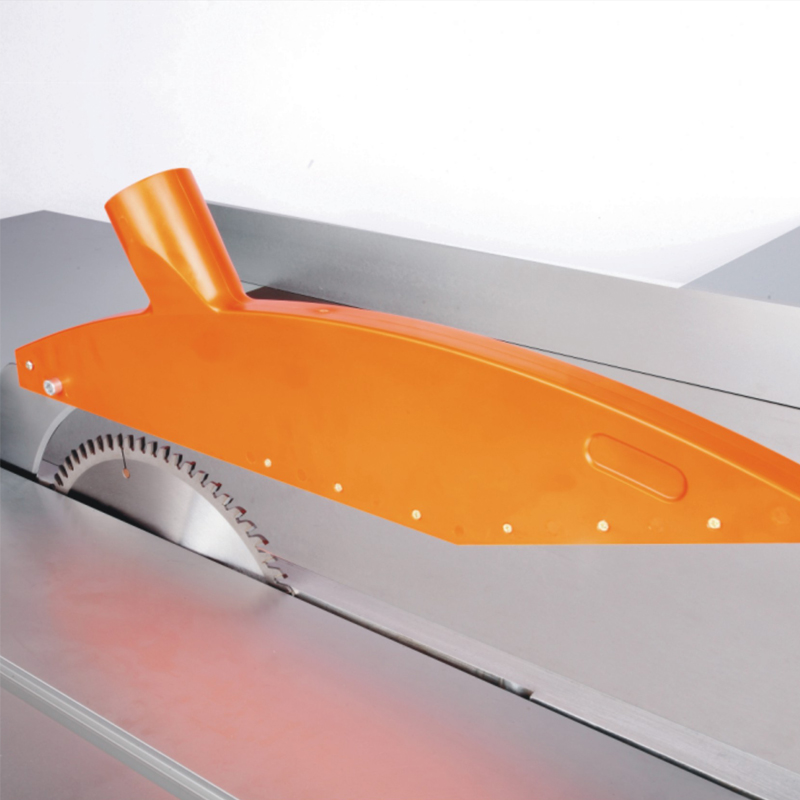

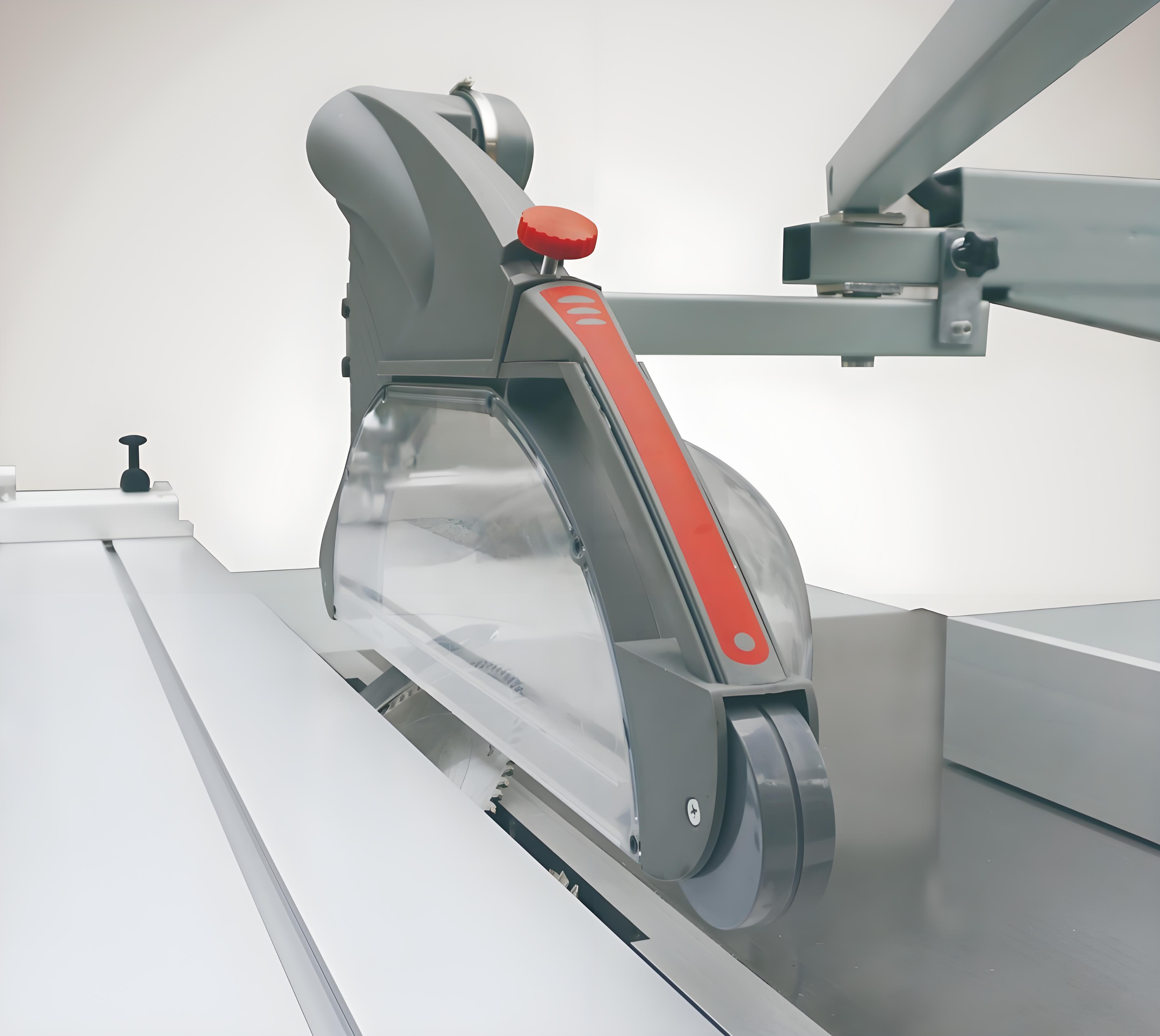

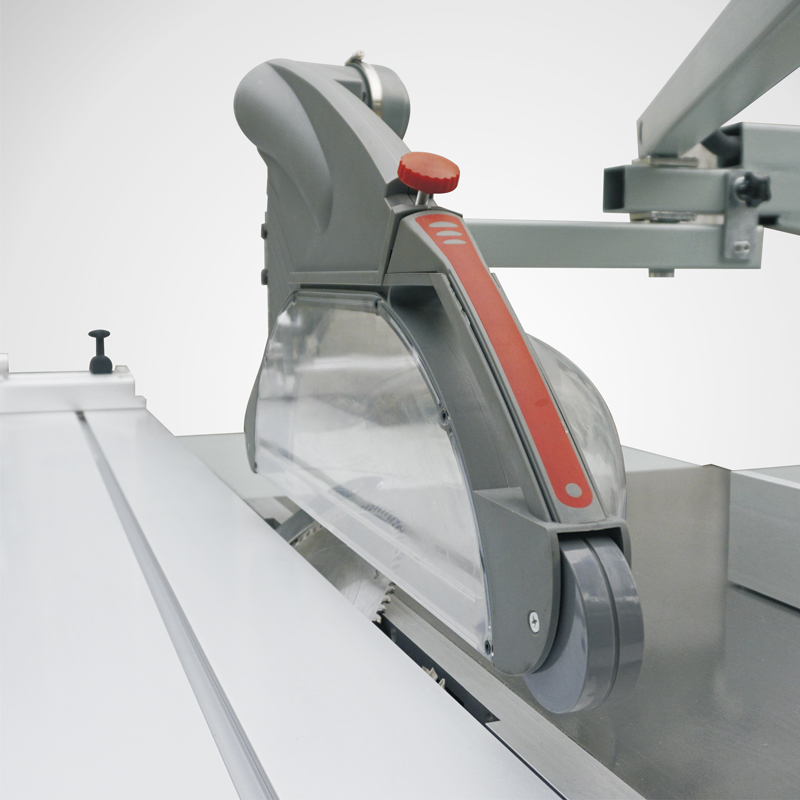

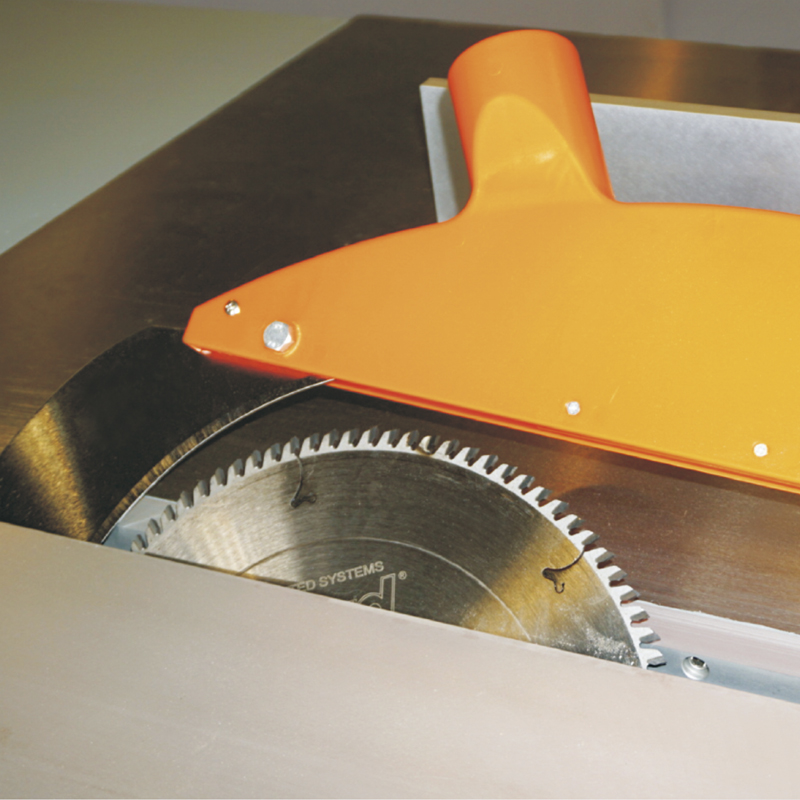

Extra-large dust cover: Shengong's latest industrial design achievement, in line with the optimal principle of fluid mechanics
✦ Safe and reliable, isolating the operator's hands from the saw blade.
✦ The dust absorption rate is increased to more than 85%.
✦ Applicable to a maximum saw blade diameter of 350mm, and a maximum sawing height of 100mm.

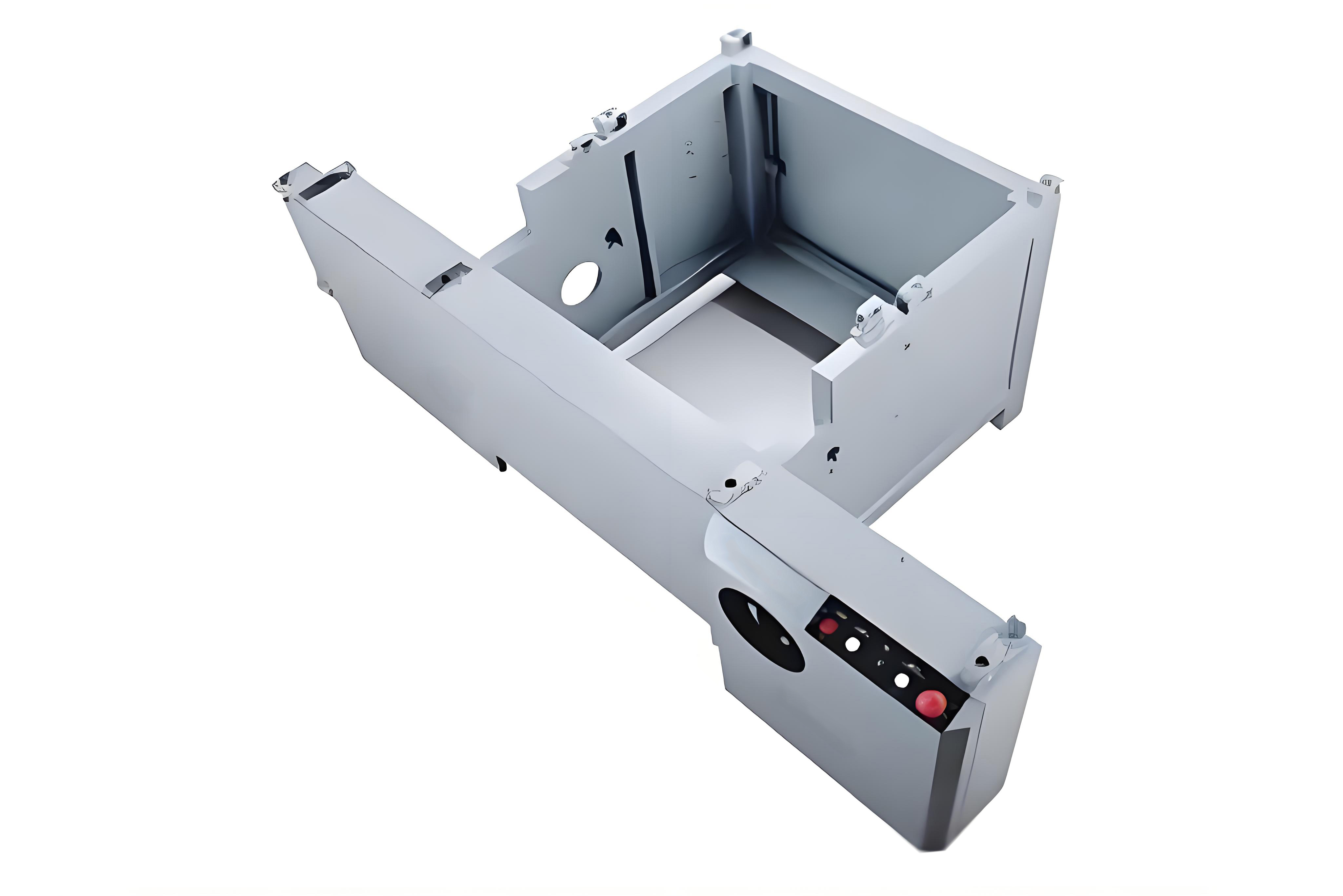

High torsional strength, strong and durable.
✦ Adopt Shengong's most advanced B series frame design.
✦ Frame structure design, laser welding, fully enclosed.
✦ Ensure the machine runs quietly and has high stability.

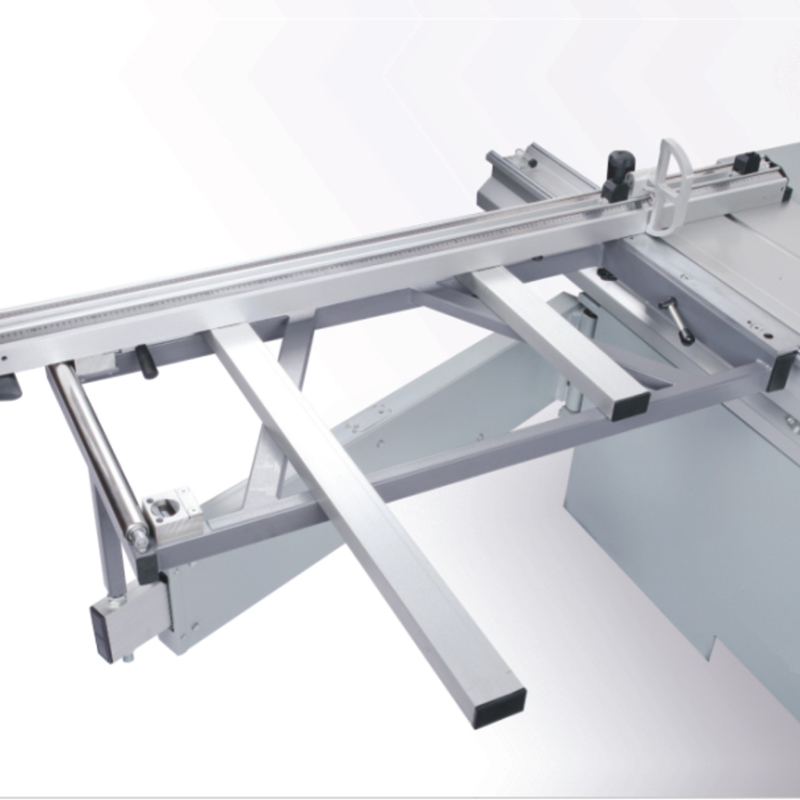

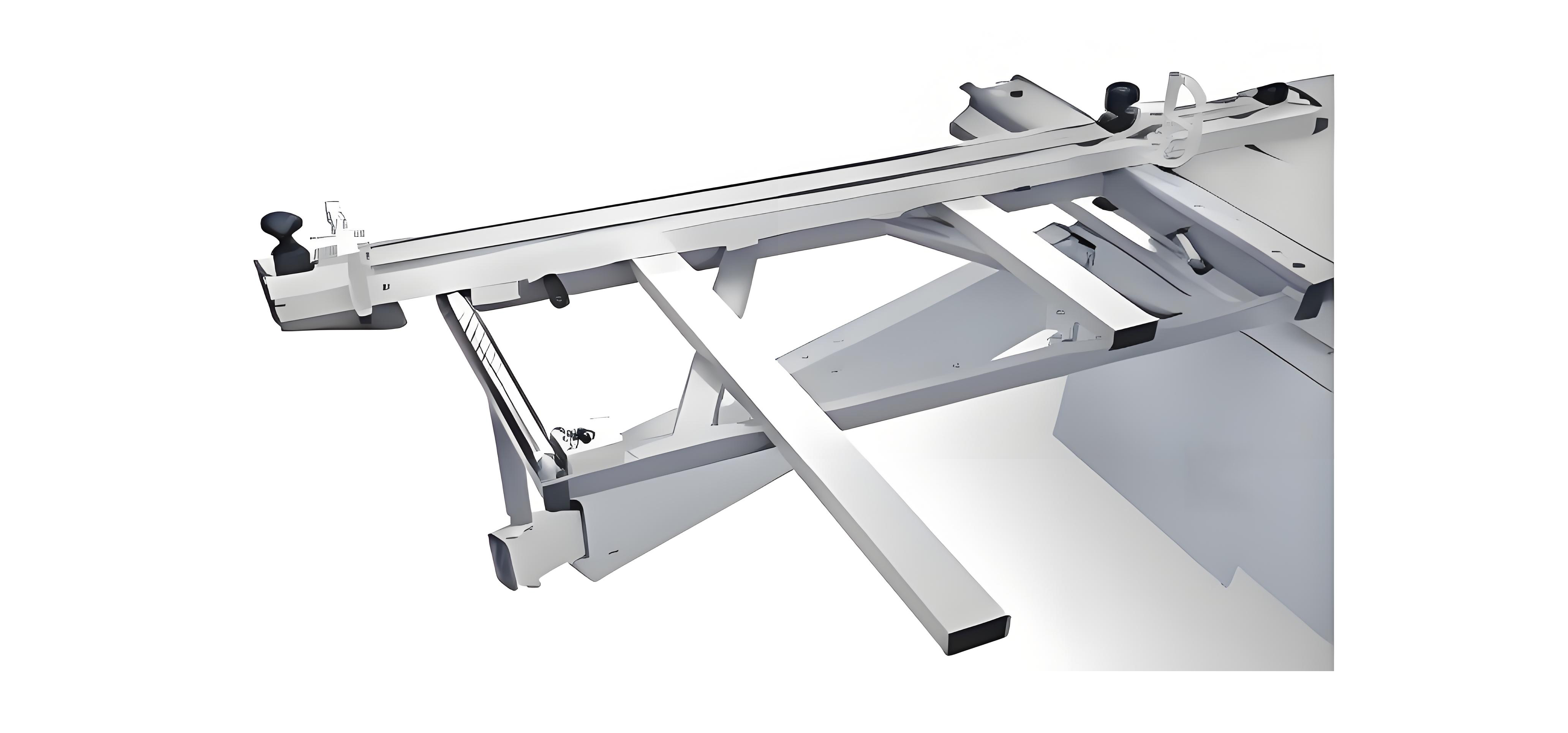

Cross baffles guarantee precise vertical sawing.
✦ Adopt thickened aluminum crossbars and imported scales
✦ The peach-shaped baffle is precise and stable, and can be easily pushed and adjusted.
✦ Can be extended to 3200mm, worry-free cutting of large plates.
Independent eccentric blocks are used to position the crossbars, and independent aluminum eccentric adjustment seats keep the crossbars stable during operation

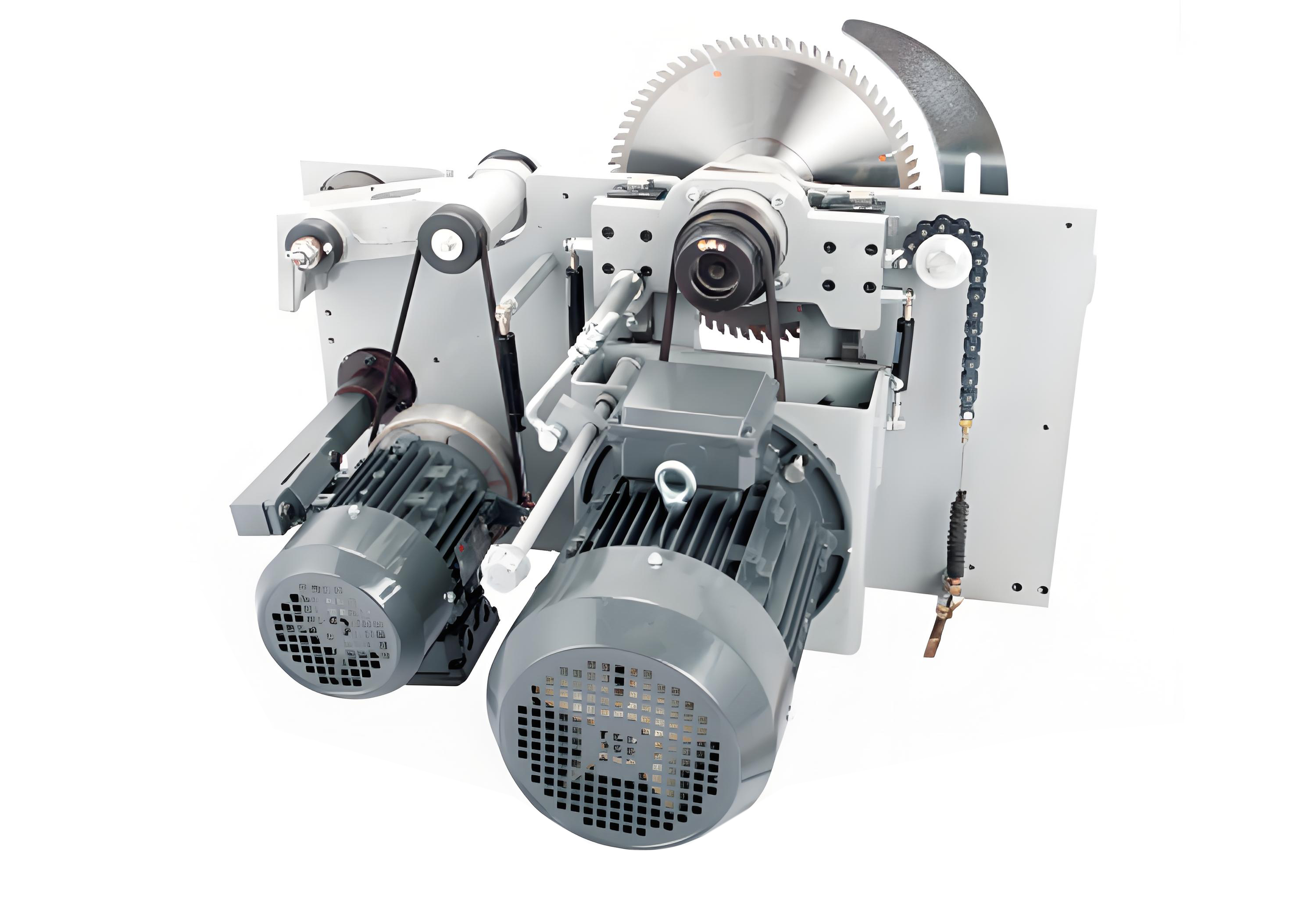

Shengong independently developed a 6.5KW main saw motor with high power, which makes it easy to saw 100mm high redwood with no speed drop, and the saw blade life is long and durable. Shengong independently developed a 1.1KW slot saw motor with high power, which makes it possible to saw high-gloss paint-free multi-layer solid wood boards without edge bursting.
✦ Main saw shaft and slot saw shaft: overall dynamic balancing treatment to ensure quiet operation of the machine.
✦ Equipped with high-precision imported linear guides, maintenance-free bearings, and high-strength slideways

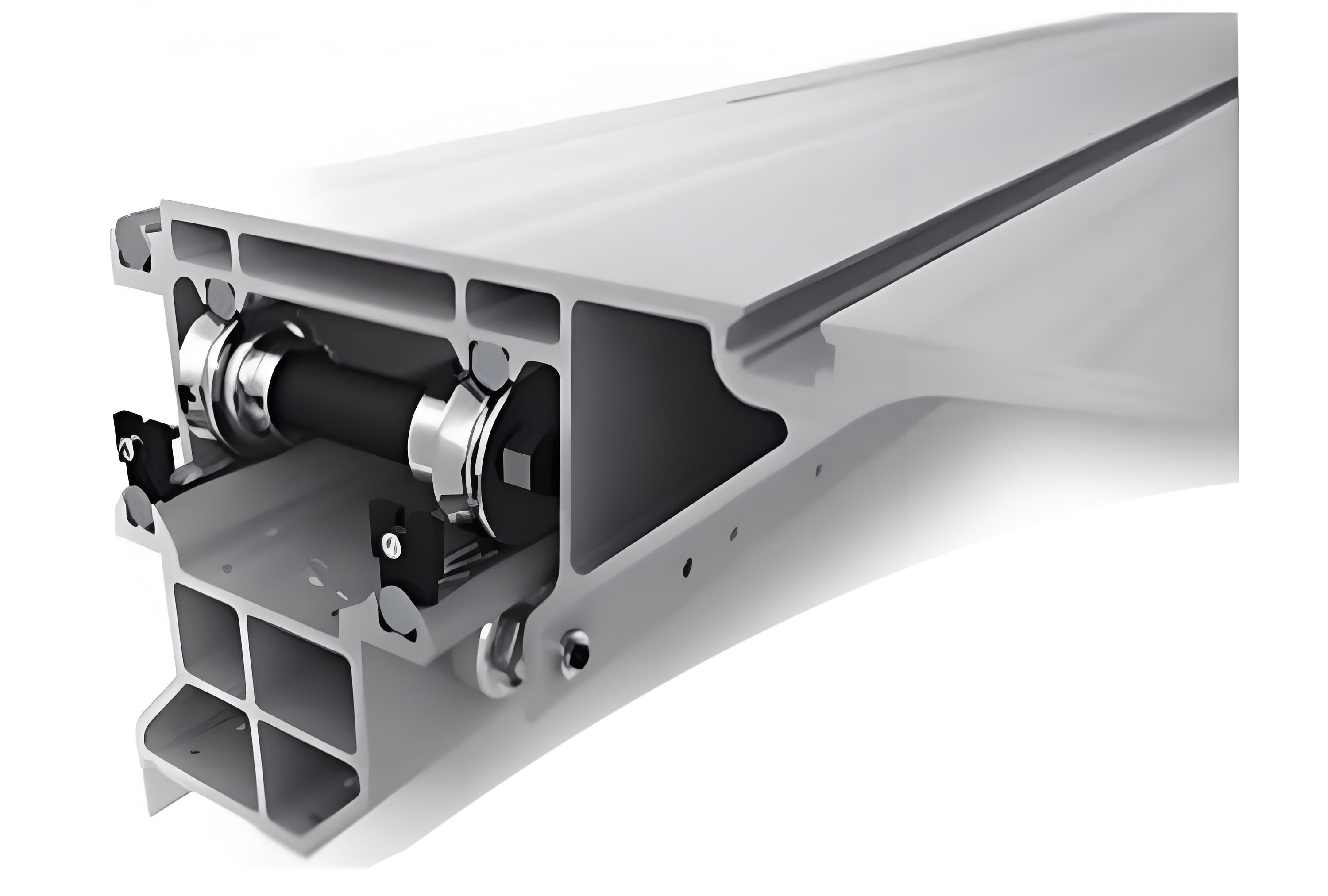

Precise and smooth, the symbol of Shengong quality, made of magnesium-aluminum alloy
✦ CNC machining center processing technology, built-in cleaning brush, maintenance-free slide.
✦ Original multi-cavity structure, imported guide rails, high precision, high wear resistance, high torsional strength.
✦ Standard length 3200mm, 1600, 2800, 3000, 3200, 3800mm lengths are available.

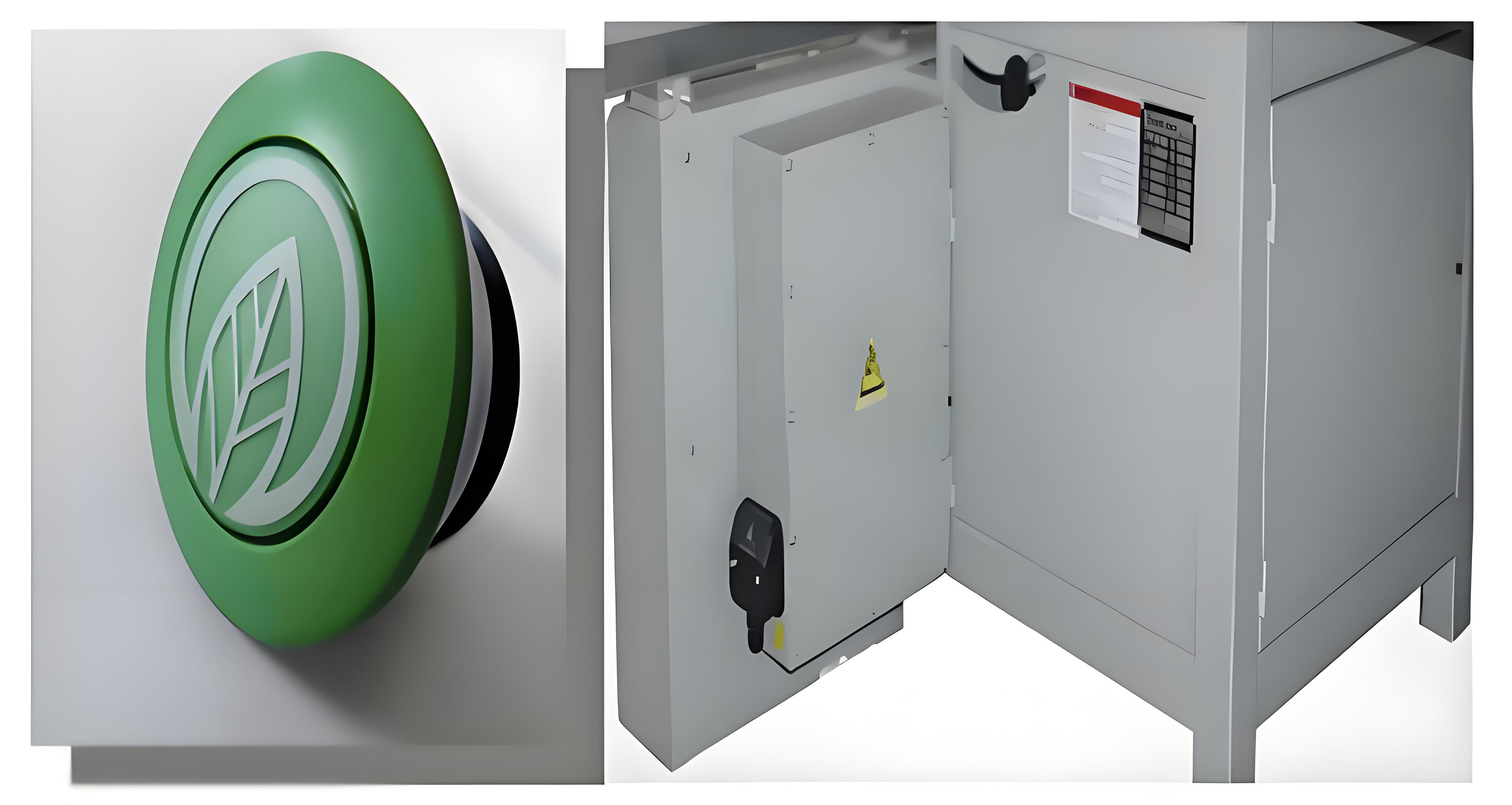

Shengong independent electric box safety 24V control circuit protection.
✦ High voltage starting will cause the operator to be at risk of electric shock when starting the power supply, causing serious economic losses and personal safety for both the company and the employees. Therefore, Shengong's choice of 24V low voltage starting method is an absolute necessity to protect the personal safety of the company and employees.
