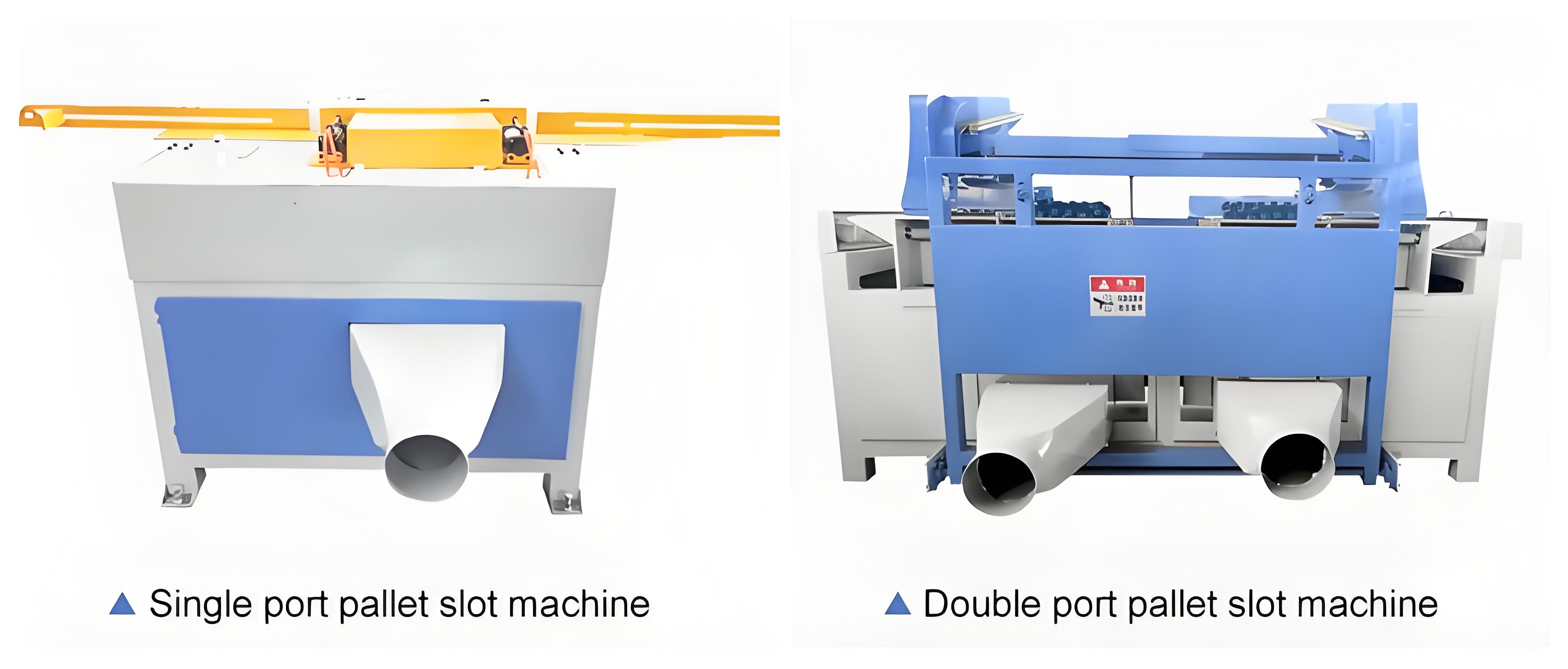

Single Head Stringer Grooving Machine Wood Pallet Stringer Notcher Machine

Capacity:
slot width: 0-230mm
slot depth: 0-48mm
Speed: 500-700pcs/hr
Cutter diameter: Interchangeable
Power: 15KW

Introduction

Introducton of wood tongue and groove machine

✦wood grooving machine(slotting machine), applicable to the American wooden pallet production process, sandalwood/tie planing, grooving;
✦The equipment fully simulates the groove opening process and the real situation in practical application. According to the feedback of customers' use, the equipment is constantly improved and improved.
✦Various parameters of the groove are optimized and designed.

Feaures of wood tongue and groove machine
✦The tool head of the machine is made of hard alloy steel, which has a series of excellent properties such as high hardness,wear resistance, strength and toughness, heat resistance and corrosion resistance, thus guaranteeing the long-term performance of the machine.

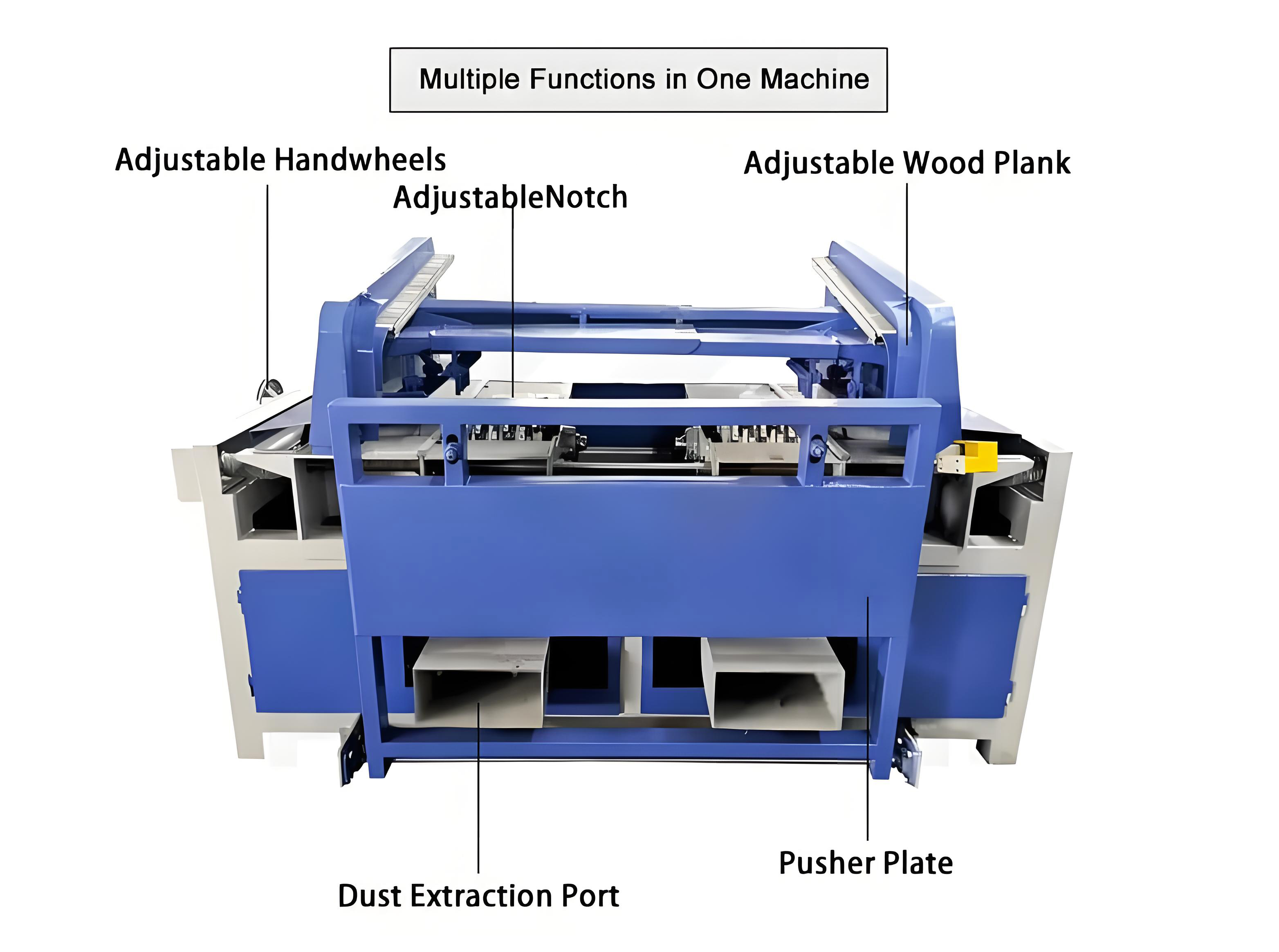

✦Adopt the method of continuous feeding and automatic discharge on the working platform, and double grooves can be made at the same time. The part of the groove is smooth and free of roughness, the size standard and high precision, and the depth specification of the slot can be adjusted.
✦Reliable safety protection device. The workers do not touch the cutter at all during operation.
✦Product design and design ideas are unique in China.
✦The high quality, safety, practicality, efficiency and other series of performances will allow more wood tray factories to
improve the degree of automation of wood machinery, completely replacing the previous manual manual digging.


Capacity	Slot width 0-230mm Slot depth 0-48mm
Speed	500-700pcs/hr
Cutter diameter	Interchangeable
Power	15kw

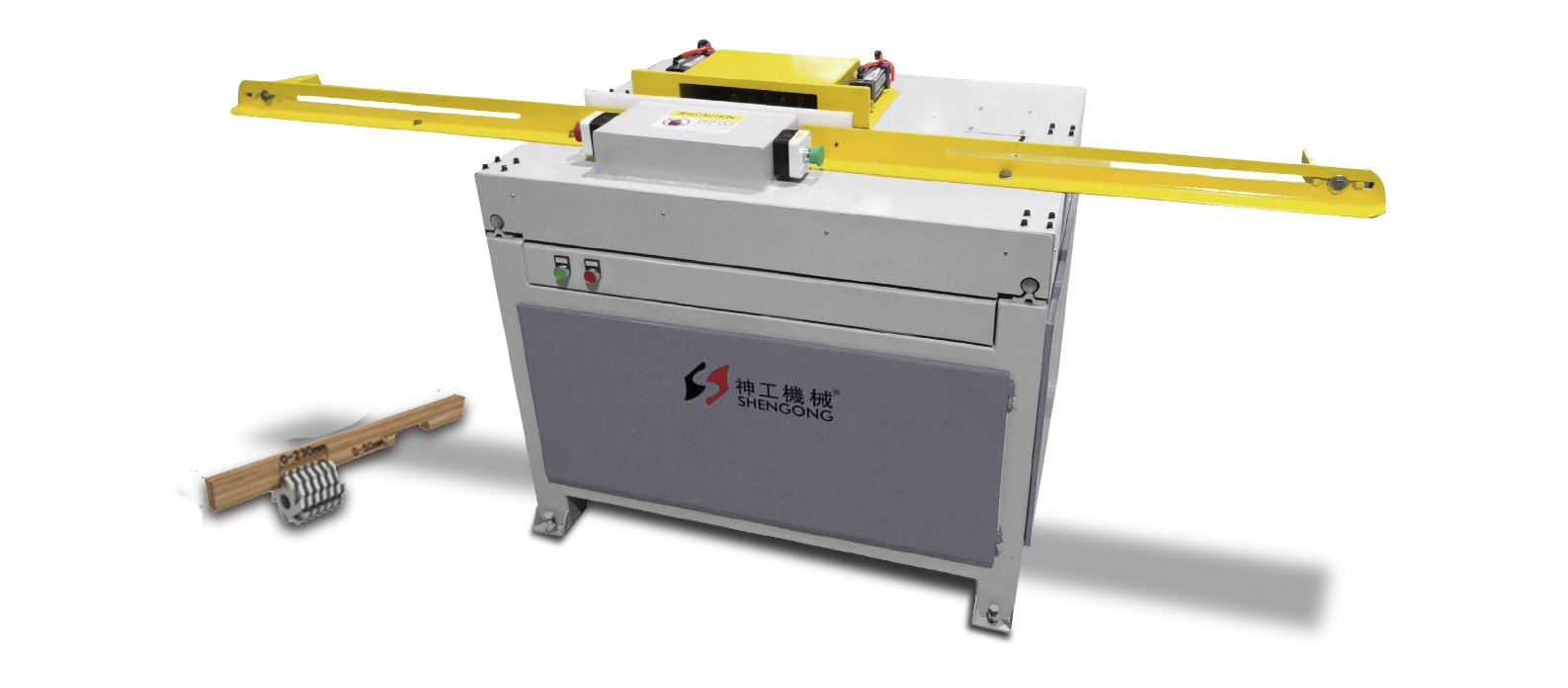

✦wood pallet notcher machine(wood notcher machine). It's mainly used for grooving wood bars, square wood and wood pallets.

✦The machine is suitable for different notching size, it also can be customized according to customer requirements.

✦Adopt continuous feed, work platform automatic discharge. The slots are smooth and uniform, with high precision size.

✦The notch head is made of hard alloy steel, with advantage of high hardness, wear resistance, strength and toughness, heat resistance and corrosion resistance, thus guaranteeing the long term performance of the machine.
